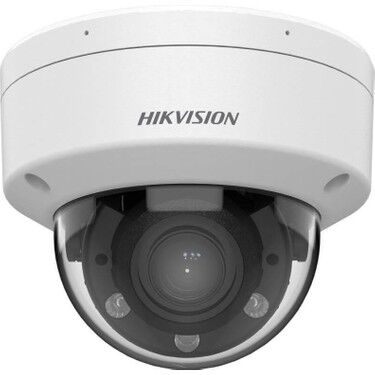

HIKVISION DS-2CD1743G2-LIZSU 1/3 4MP 2.8-12mm POE Sesli Dome IP Güvenlik Kamera

DS-2CD1743G2-LIZ(S)U 4 MP Dual Light MD 2.0 Varifocal Dome Network Camera High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Clear imaging against strong back light due to 120 dB true WDR technology Support on-board storage up to 512 GB (SD card slot) Efficient H.265+ compression technology Built-in microphone for real-time audio security 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Water and dust resistant (IP67), vandal proof (IK08) Kamera Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355° Lens Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm Focal Length & FOV 2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34° Lens Mount Ø14 Iris Type Fixed Aperture F1.6 DORI DORI D: 64.0 to 198.0 m, O: 25.4 to 78.6 m, R: 12.8 to 39.6 m, I: 6.4 to 19.8 m Illuminator Supplement Light Type IR,White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream Audio Audio Type Mono sound Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) User/Host Up to 32 users 3 user levels: administrator, operator, and user Client iVMS-4200,Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Day/Night Switch Day,Night,Auto,Schedule Wide Dynamic Range (WDR) 120 dB SNR ? 52 dB Image Enhancement BLC,HLC,3D DNR Privacy Mask 4 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in Microphone Yes,1 built-in microphone Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output General Power 12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12 W Material Base: metal, cover: plastic Dimension Ø121.5 mm × 97.6 mm (Ø4.78 × 3.84\")" Package Dimension 150 mm × 150 mm × 141 mm (5.90" × 5.90" × 5.55") Weight Approx. 540 g (1.2 lb.) With Package Weight Approx. 740 g (1.6 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian General Function Heartbeat,anti-banding,mirror,password protection,password reset via email Approval EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013,IK08: IEC 62262:2002
