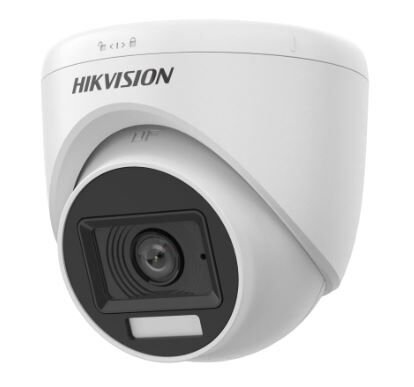

HİKVİSİON DS-2CE76D0T-LPFS 2.8mm 2mp Smart Hybrid Light Kamera

HİKVİSİON DS-2CE76D0T-LPFS 2.8mm 2mp Smart Hybrid Light Kamera

High quality imaging with 2 MP, 19201080 resolution
2.8 mm Sabit lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Smart-Hybrid light, optimize your security with flexible lighting options
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) 1080 (V)
Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
Lens MountM12
Illuminator
Supplement Light TypeWhite Light;IR
Supplement Light RangeIR : Up to 20 mWhite Light : Up to 20 m
Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 1080P @ 30 fps, 1080P @ 25 fpsAHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps

CVBS: PAL/NTSC

Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
White BalanceAuto/Manual
AGCYes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Built-In MicrophoneYes
General
MaterialPlastic
Dimension84.6 mm 85.02 mm (3.33 3.35)
WeightApprox. 156 g (0.34 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC 25%ou are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.3 W
