* HİKVİSİON DS-2XS2T41G1-ID/4G 4mm 4MP Solar Kamera

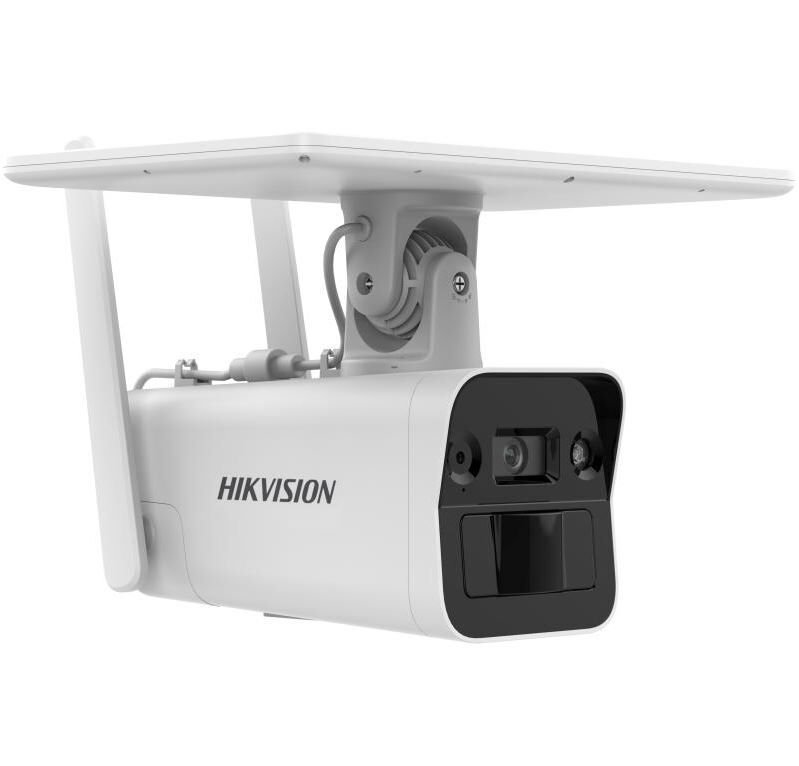

Hikvision DS-2XS2T41G1-ID/4G 4mm 4MP Solar Kamera

• High quality imaging with 4 MP resolution
• Standalone with solar panel and built-in battery
• Support human and vehicle detection
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication

Teknik Özellikler.

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 1440
• Min. IlluminationB/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentSolar panel: tilt: -45 to 45, rotate:-30 to 30

• Lens
• Lens TypeFixed focal lens, 4 and 6 mm optional
• Iris TypeFixed
• Aperture4mm: F1.28, 6mm: F1.6
• Depth Of Field

  4 mm: 2.7 m to ∞

  6 mm: 5.9 m to ∞

• Focal Length & FOV

  4 mm, Horizontal FOV: 79, Vertical FOV: 43, Diagonal FOV: 93

  6 mm, Horizontal FOV: 49, Vertical FOV: 26, Diagonal FOV: 57

• Lens MountM12

• DORI
• DORI

  4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

  6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
• IR Wavelength850 nm
• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz: 12.5 fps (2560 1440, 1920 1080, 1280 720)

  60 Hz: 15 fps (2560 1440, 1920 1080, 1280 720)

• Sub-Stream

  50 Hz: 12.5 fps (1280 720, 640 480, 640 360)

  60 Hz: 15 fps (1280 720, 640 480, 640 360)

• Video Compression

  Main stream: H.265/ H.264,

  Sub-stream: H.265/H.264/MJPEG,

  H.264+ and H.265+: main stream supports under performance mode

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region Of Interest (ROI)1 fixed region for main stream
• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Audio
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Network
• SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• APIISAPI,SDK
• ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• Network StorageAuto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Mobile Communication
• SIM Card TypeMicro SIM
• Uplink And Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
• Frequency

  EU:

  LTE-TDD: B38/B40/B41

  LTE-FDD: B1/B3/B5/B7/B8/B20/B28

  WCDMA: B1/B5/B8

  GSM: B3/B5/B8

  LA:

  LTE-TDD: B38/B40

  LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66

  WCDMA:B1/B2/B3/B4/B5/B8

  GSM: B2/B3/B5/B8

• StandardLTE-TDD,LTE-FDD,WCDMA,GSM

• Image
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)Digital WDR
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Transducer
• Transducer TypePIR + Radar
• Detection Angle4 mm : Horizontal: 80, vertical: 42,6 mm：Horizontal: 50, vertical: 22
• Detection RangeUp to 12 m

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in eMMC storage, up to 8 GB,

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.

• Built-In MicrophoneYes
• Built-In SpeakerYes
• Reset KeyYes

• Event
• Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
• Linkage

  Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

• General
• Power

  Power Consumption and Current:

  Typical power scenarios: 1.85 W (4G working)

  Standby scenarios: 80 mW

  Max. power consumption: 7 W

  Power Supply:

  12 VDC

  *For debugging only

  6.5 W (deviation: 1 W) Solar panels

  Power Interface:

  Power supply interface: 5.5 mm coaxial power plug

  Extened solar panel: 5.5 mm coaxial power plug

• MaterialPlastic
• Storage Conditions0 C to 50 C (32 F to 122 F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat,mirror,flash log
• Startup And Operating Conditions0 C to 50 C (32 F to 122 F). Humidity 95% or less (non-condensing)
• Dimension213.7 mm 292.4 mm 188.7 mm (8.4" 11.5" 7.3")
• Package Dimension345 mm 240 mm 292 mm (13.6" 9.4" 11.5")
• Weight

  Approx. 1.42 kg (3.1 lb.)

• With Package Weight

  Approx. 2.07 kg (4.6 lb.)

• Battery
• Battery TypeTernary Lithium
• Capacity51.46 Wh
• Max. Charging Voltage12.6 V
• Operating Temperature

  Charging: 0 C to 45 C (32 F to 113 F)

  Discharging: -20 C to 50 C (-4 F to 122 F)

• Battery Voltage8.1 V to 12.6 V
• Battery LifeMore than 800 cycles
• Cycle Lifetime

  Proactive mode: 1.5 days,

  Standby mode: 11 days

• Battery WeightApprox. 185 g (0.4 lb.)

• Approval
• EMC

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  *CE and RCM certifications are only for the device sold in the European region.

• RF

  CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

  *CE certification is only for the device sold in the European region.

• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  LOA: IEC/EN 60950-1,

  *CE and LOA certifications are only for the device sold in the European region.

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006,

  *CE certification is only for the device sold in the European region.

• ProtectionIP67: IEC 60529-2013
