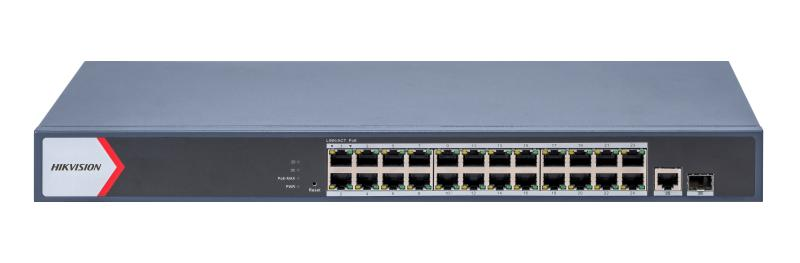

HIKVISION DS-3E1526P-EI/M 26 Port Gbit 24 Port Poe 230W 1xGbit+1xSFP Uplink Yönetilebilir Smart Switch

Hikvision 24 Port Gigabit Akıllı PoE Switch Marka: Hikvision Ürün Kodu: DS-3E1526P-EI/M 24 x gigabit PoE RJ45 port, 1 × gigabit RJ45 port, 1 x gigabit fiber optik port Toplam PoE power budget 230 W Güvenlik sistemleri için birleşik bulut yönetimi Ağ topolojisi Uzaktan sorun giderme Görselleştirilmiş topoloji yönetimi 300 m'ye kadar uzun menzilli PoE iletimi 6 kV aşırı gerilim koruması PoE PoE Standardı IEEE 802.3af,IEEE 802.3at poe budget 230W Genel Özellikler Depolama Sıcaklığı -40 °C to 85 °C Güç Kaynağı 100~240V AC MAC ADRESS 8K Güç Tüketimi 250W Çalışma Sıcaklığı 0 °C to 45 °C Boyut 440.0mm × 220.8mm × 44.0mm Ağırlık 2.96kg Aşırı Gerilim Koruması 6kV Dahili Önbellek 4.1Mbits Kurulum Modu Raf Port Gücü 30W PoE Güç Pimi 8 pimli güç: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Switch Kapasitesi 56Gbps Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor, and expand your video security system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network, and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. ? 24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port ? Total PoE power budget 230 W ? Unified cloud management for security systems ? Network topology at your fingertips ? Remote troubleshooting ? Visualized topology management ? Up to 300 m long-range PoE transmission ? 6 kV surge protection ? Specification General Shell Metal material Net Weight 2.96 kg (6.52 lb) Gross Weight 3.2 kg (7.05 lb) Dimensions (W × H × D) 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'') Operating Temperature 0 °C to 45 °C (0 °F to 113 °F) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 100~240 V AC, 50/60 Hz, Max. 4 A Installation Mode Rack (equipped with mounting ears) Max. Power Consumption 250 W Power Consumption in Idle 30 W Surge Protection 6 kV Network Parameters Ports 24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port MAC Address Table 8 K Switching Capacity 56 Gbps Packet Forwarding Rate 41.66 Mpps Internal Cache 4.1 Mbits PoE Power Supply PoE Standard IEEE 802.3af,IEEE 802.3at PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port PoE: Ports 1 to 24 Max. Port Power 30 W PoE Power Budget 230 W Software Function Long Range Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition. Port Isolation Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. PoE Watchdog Ports 1 to 24: auto detect and restart the cameras that do not respond. Link Aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups. Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP. VLAN VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. Approval EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) Chemistry CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
