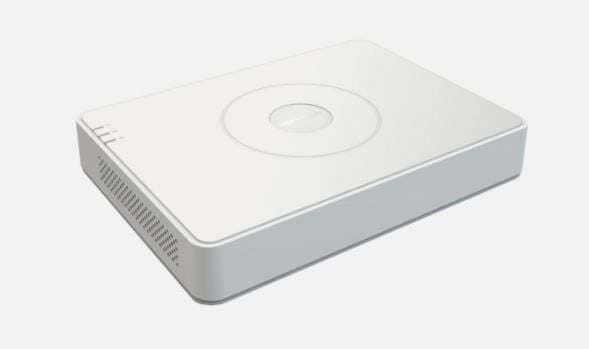

HIKVISION DS-7116HGHI-K1 16 Kanal 1 Kanal Ses 720P (1080p Lite) 1 SATA x 10TB HD-TVI - AHD - Analog DVR

16 CH 1080P Lite Mini 1U H.265 DVR 16 channels and 1 HDD mini size DVR H.265 Pro+ / H.265 Pro video compression Encoding ability up to 1080p lite @ 15 fps 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) Up to 18 network cameras can be connected Recording Encoding Resolution 1080p lite/720p/VGA/WD1/4CIF/CIF Video Bit Rate 32 Kbps to 4 Mbps Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Dual Stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bit Rate 64 Kbps Video And Audio Audio Input 1-ch RCA (2.0 Vp-p, 1 K?), and 16-ch via coaxial cable Audio Output 1-ch, RCA (Linear, 1 K?) Synchronous Playback 16-ch IP Video Input 2-ch (up to 18-ch);Up to 5MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras HDTVI Input 1080p25, 1080p30, 720p25, 720p30 HDCVI Input 1080p25, 1080p30, 720p25, 720p30 CVBS Input PAL/NTSC Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection AHD Input 1080p25, 1080p30, 720p25, 720p30 CVBS Output N/A HDMI/VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Network Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connections 128 Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface Auxiliary Interface Capacity Up to 10 TB capacity for each disk Serial Interface N/A USB Interface Rear panel: 2 × USB 2.0 Alarm In/Out N/A SATA 1 SATA interface General Consumption(Without HDD) ? 7 W Working Humidity 10% to 90% Power Supply 12 VDC, 1.6 A Working Temperature -10 °C to +55 °C (+14 °F to +131 °F) Dimensions(W × D × H) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) Weights (Without HDD) ? 1.8 kg (4.0 lb)
