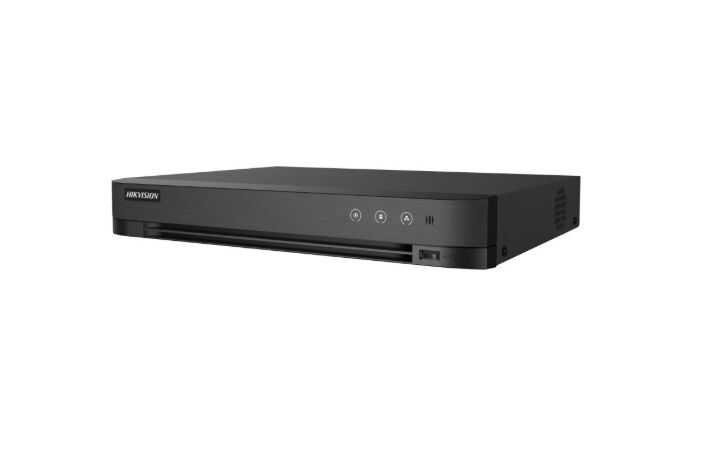

HIKVISION IDS-7204HQHI-M1/XT 4 Kanal 1 Giriş - 1 Çıkış 3MP/1080p/720p@25fps 1 SATA x 10TB HD-TVI - AHD - Analog DVR

iDS-7204HQHI-M1/XT 4-ch 1080p 1U H.265 AcuSense DVR 4 channels and 1 HDD 1U AcuSense DVR Support 1-ch Facial Recognition or 2-ch Advanced model Perimeter Protection based on Deep Learning algorithm Support 2-ch AcuSearch Technology Efficient H.265 pro+ compression technology Encoding ability up to 3K/5MP Lite @ 12 fps 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) Up to 6-ch network cameras can be connected Support All channels Motion Detection Technology Support All channels HDTVI Two-Way Audio Technology Facial Recognition Face Picture Comparison Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera) Face Picture Library Up to 16 face picture libraries Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Perimeter Protection Human/Vehicle Analysis Up to 2-ch Video and Audio IP Video Input 2-ch (up to 6-ch), Up to 6 MP resolution Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection HDTVI Input 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps HDCVI Input 3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps CVBS Input PAL/NTSC CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480 HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output Audio Input 4-ch, RCA (2.0 Vp-p, 1 K?), 4-ch via coaxial cable;1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 K?),4-ch via coaxial cable Audio Output 1-ch, RCA (Linear, 1 K?) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) Synchronous playback 4-ch Recording Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Video Bitrate 32 Kbps to 6 Mbps Dual-stream Support main stream or sub stream Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps Network Remote Connection 32 Total Bandwidth 72 Mbps Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface Auxiliary Interface SATA 1 SATA interface, up to 10 TB capacity for each disk Serial Interface RS-485 (half-duplex) USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Alarm In/Out N/A (optional to support);4/1 General Power Supply 12 VDC, 1.5 A Consumption ? 18 W Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) ? 1.16 kg (2.6 lb)
