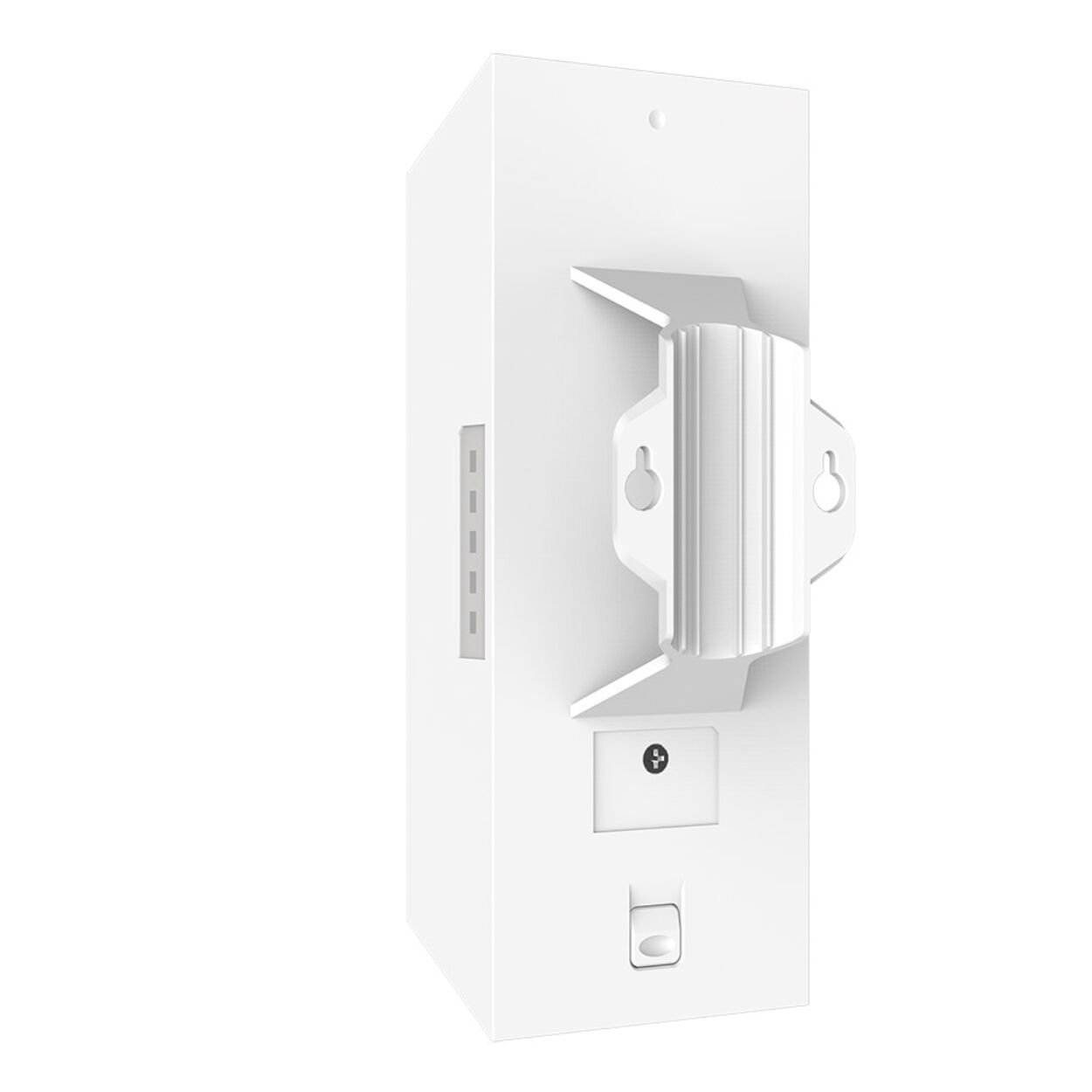

IP-COM IP-CPE3 300MBPS 8DBI 2.4GHz OUTDOOR ACCESS POINT
IP-COM CPE3
2,4 GHz 8dBi Dış Mekan CPE
- 2,4 GHz 11n 300 Mb/sn
- 8dbi yönlü anten
- IP65 su geçirmez muhafaza
- AP, İstasyon, WISP çalışma modu desteklenir
- Birlikte verilen PoE Enjektörüyle 30 metreye kadar esnek dağıtım
|
Model |
CPE3 |
|
Dimensions |
190.35*80*67.5mm |
|
Deployment |
Pole Mount |
|
Application Scenarios |
Long range video surveillance,data transmission and WISP CPE |
|
Frequency Range |
2.4GHz |
|
Maximum Wireless Rate |
300Mbps |
|
Waterproof Level |
1*10/100Mbps PoE/LAN Port |
|
Antennas Gain |
8dbi |
|
Antenna Beamwidth |
Horizontal: 60° Vertical: 60° |
|
Reset Button |
1 |
|
Max Power Consumption |
2.6W |
|
Waterproof Level |
IP65 |
|
LED indicator |
PoE/LAN,WiFi,LED1,LED2,LED3 |
|
Power Method |
DC or Passive PoE |
|
Passive PoE |
Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) |
|
Receiver sensitivity |
MCS0: -92dbm |
|
Operating mode |
AP/Station/WISP |
|
Compliant Standards |
IEEE 802.11b/g/n |
|
Enable/Disable Wireless Radio |
Support |
|
SSID Hidden |
Support |
|
Wireless Client isolation |
Support |
|
SSID Isolation |
Support |
|
Client Limitation For SSID |
Support |
|
Wireless Access Control |
Support |
|
Weak Signal Client Limitation |
Support |
|
Transmission Power |
Adjustable power by 1dBm |
|
WMM Capable |
Support |
|
APSD Capable |
Support |
|
Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
|
Transparent Bridge |
Support |
|
VLAN Tagging for SSID |
Support |
|
DHCP Server |
Support |
|
VPN Pass-Through |
PPTP,L2TP |
|
Remote Web access |
Support |
|
Schedule Reboot |
Support |
|
Page Timeout |
Support |
|
Ping Watchdog |
Support |
|
Dyndns |
noip, dyndns.org |
|
Network Diagnoses |
Ping, Traceroute, Signal Scan |
|
Time&Date Setting |
Support |
|
Firmware upgrade |
Support |
|
Backup/Restore Configuration |
Support |
|
Username Managerment |
Support |
|
System Log |
Support |
|
Managed By Controller |
PC Software -- CPE Controller |
|
Package Contents |
1*2.4GHz 8dBi Outdoor CPE |
|
Operating Temperature |
-30℃ ~ 55℃ |
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
10%~90% non-condensing |
|
Default login IP |
192.168.2.1 |
|
Default Login Username |
admin |
|
Default Login Password |
admin |
|
Certifications |
FCC/CE/RoHS |
