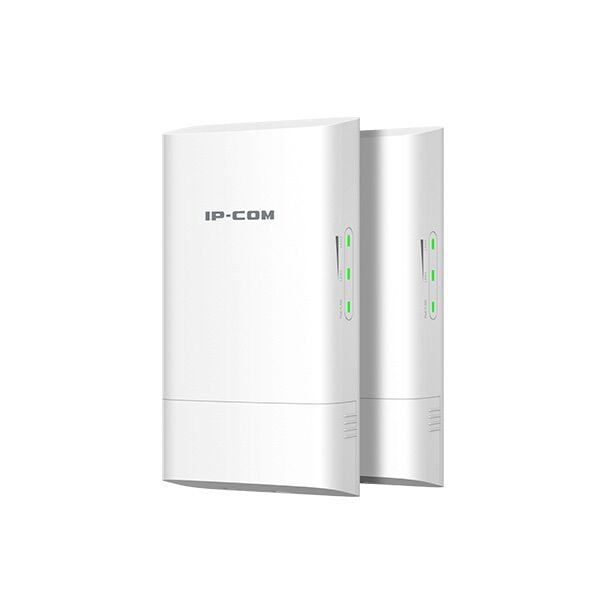

IP-COM IP-CPE5 867MBPS 9DBI 5GHz OUTDOOR ACCESS POINT
IP-COM CPE5
5GHz 9dBi ac 867Mbps Dış Mekan CPE
- 5GHz 11AC 867Mbps
- 9dbi yönlü anten
- Bir hızlı Ethernet Bağlantı Noktası
- IP65 su geçirmez muhafaza
- 12V 1A DC/12V 1A Pasif PoE destekli
| Model |
CPE5 |
|
Dimensions |
132*72*46.3mm |
|
Deployment |
Pole/Wall Mount |
|
Application Scenarios |
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
|
Frequency Range |
5GHz |
|
Compliant Standards |
IEEE 802.11a/n/ac |
|
Private TDMA Protocol |
/ |
|
Maximum Wireless Rate |
867Mbps |
|
Interfaces |
1*10/100Mbps LAN Port |
|
Antennas Gain |
9dBi |
|
Antenna Beamwidth |
Horizontal: 30° Vertical: 30° Elevation: 30° |
|
Reset Button |
1 |
|
Power Consumption |
4.7W |
|
Waterproof Level |
IP65 |
|
LED indicator |
PoE/LAN,LED1,LED2 |
|
Power Method |
12V 1A Passive PoE |
|
Lightning Protection |
/ |
|
PoE 802.3af/at |
/ |
|
Passive PoE |
Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters |
|
Receive sensitivity |
11a 6Mbps -92dBm±1.5dBm |
|
Operating mode |
AP/Station |
|
Enable/Disable Wireless Radio |
Support |
|
SSID Hidden |
Support |
|
Wireless Client isolation |
Support |
|
SSID Isolation |
/ |
|
Channel Bandwidth |
20/40/80MHz |
|
Client Limitation For SSID |
Support |
|
Wireless Access Control |
Support |
|
Weak Signal Client Limitation |
/ |
|
Transmission Power |
Adjustable power by 1dBm |
|
WMM Capable |
Support |
|
APSD Capable |
Support |
|
Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK |
|
Transparent Bridge |
Support |
|
VLAN Tagging for SSID |
/ |
|
DHCP Server |
/ |
|
VPN Pass-Through |
PPTP,L2TP |
|
Remote Web access |
/ |
|
Schedule Reboot |
Support |
|
Page Timeout |
Support |
|
Ping Watchdog |
Support |
|
Dyndns |
/ |
|
Network Diagnoses |
/ |
|
Time&Date Setting |
Support |
|
Firmware upgrade |
Support |
|
Backup/Restore Configuration |
Support |
|
Username Managerment |
Support |
|
System Log |
Support |
|
Managed By Controller |
PC Software -- CPE Controller |
|
Package Contents |
1*5GHz 9dBi ac 867Mbps Outdoor CPE |
|
Operating Temperature |
-30℃ ~ 60℃ |
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
10%~90% non-condensing |
|
Default login IP |
192.168.2.1 |
|
Default Login Username |
admin |
|
Default Login Password |
admin |
|
Certifications |
FCC/CE/RoHS |
