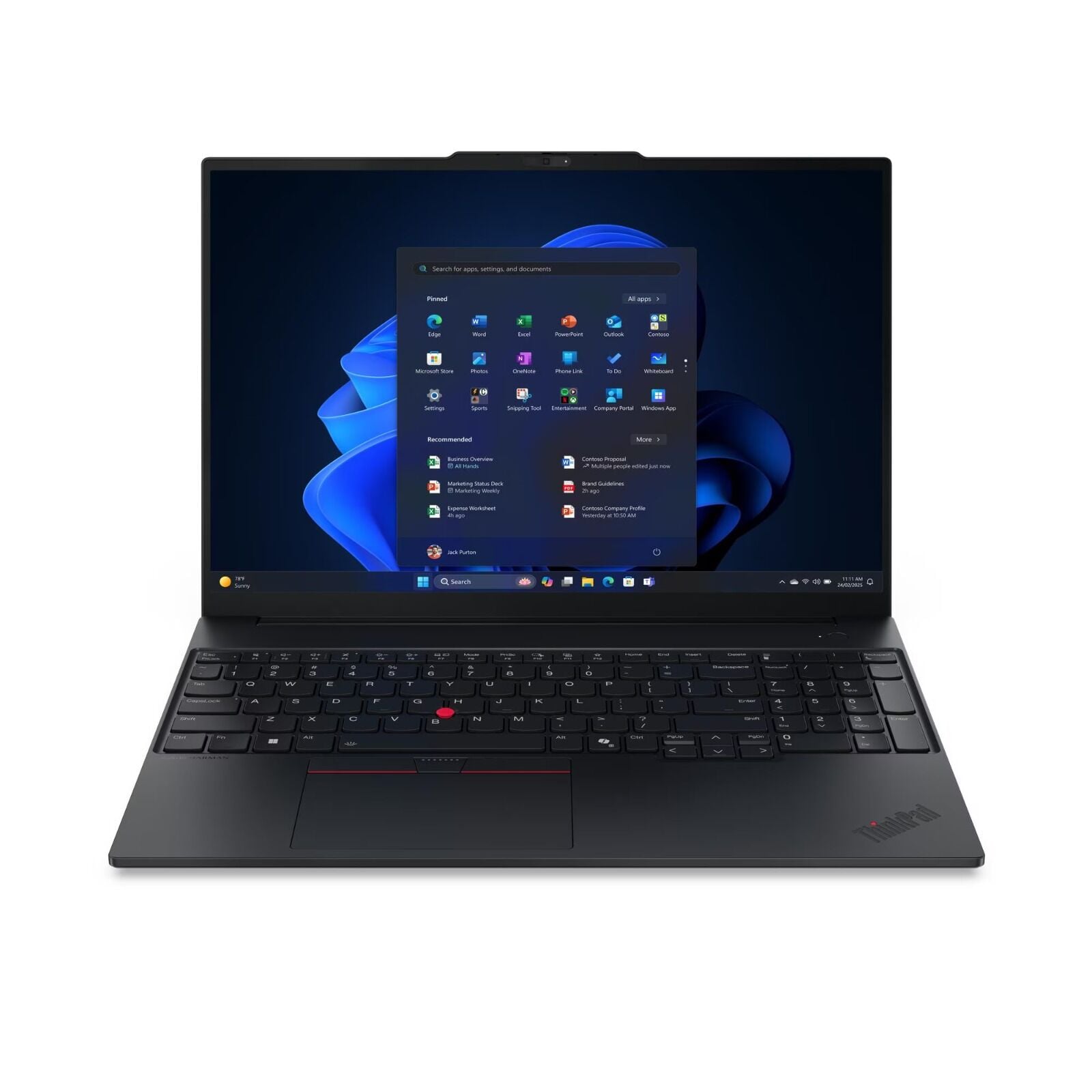

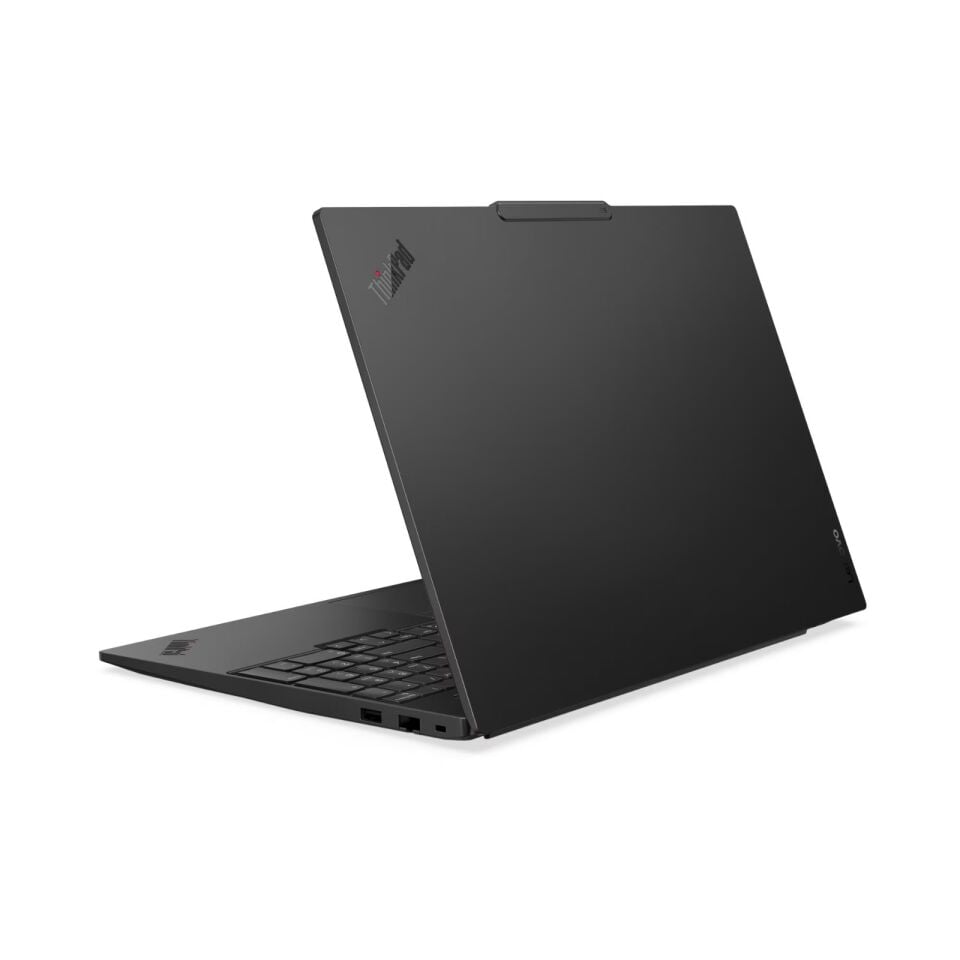

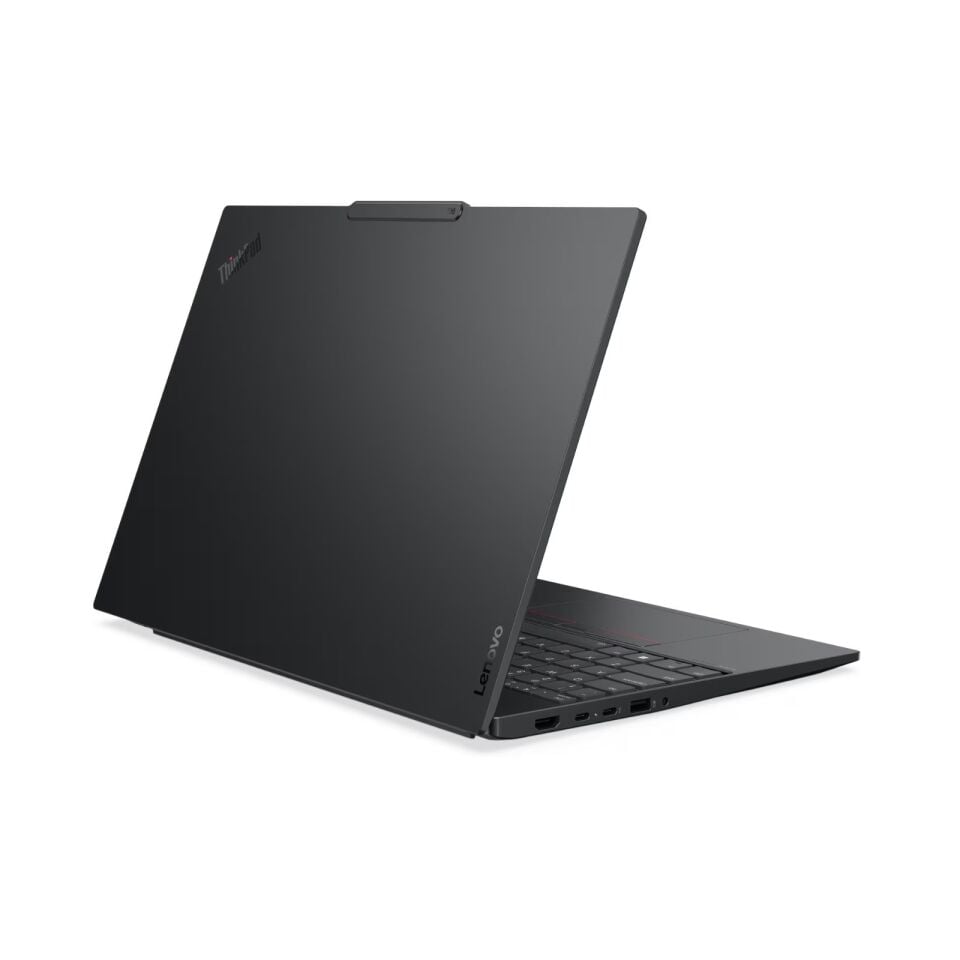

LENOVO THINKPAD E16 G3 ULTRA 7 255H 16GB 1TB SSD 16'' FREEDOS NOTEBOOK
LENOVO THINKPAD E16 G3 ULTRA 7 255H 16GB 1TB SSD 16" FREEDOS NOTEBOOK
- Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache
- 1x 16GB SODIMM DDR5-5600
- 1 TB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0
- Integrated Intel Arc 140T GPU Functions as Intel Graphics
- 1Y Premier WHB (CPN), 3Y Courier/Carry-in upgrade from 1Y Courier/Carry-in WHB (CPN)
| PERFORMANCE | |
| Processor |
Intel Core™ Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB Intel® Smart Cache |
| AI PC Category |
AI PC |
| NPU |
Integrated Intel® AI Boost, up to 13 TOPS |
| Graphics |
Integrated Intel® Arc™ 140T GPU Functions as Intel® Graphics |
| Chipset |
Intel® SoC Platform |
| Memory |
1x 16GB SODIMM DDR5-5600 |
| Memory Slots |
Raptor Lake, Meteor Lake and Arrow Lake: two DDR5 SODIMM slots, dual-channel capable |
| Max Memory |
Raptor Lake with H Series processors, Meteor Lake and Arrow Lake: up to 64GB DDR5-5600 |
| Storage |
1 TB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Slot |
Raptor Lake, Meteor Lake and Arrow Lake: two M.2 slots • One M.2 2242 PCIe® 4.0 x4 slot • One M.2 2280 PCIe® 4.0 x4 slot |
| Max Storage Support |
Raptor Lake, Meteor Lake and Arrow Lake: up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Card Reader |
No card reader |
| Audio Chip |
High Definition (HD) Audio, Senary SN6147 codec |
| Speakers |
Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN |
| Microphone |
2x, Array |
| Camera |
FHD 1080p + IR Hybrid with Privacy Shutter |
| Battery |
64Wh |
| Power Adapter |
65W USB-C® (3-pin) |
| DESIGN | |
| Display |
16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz |
| Touchscreen |
None |
| Screen-to-Body Ratio |
90.7% |
| Pen |
Pen Not Supported |
| Keyboard |
Backlit, Turkish |
| Dimensions (WxDxH) |
356 x 249 x 10.1/17.05 (front/rear), 21.15 (maximum) mm; 14.01 x 9.80 x 0.40/0.67 (front/rear), 0.83 (maximum) inches |
| Weight |
Starting at 1.63 kg (3.59 lbs) |
| Case Color |
Black |
| Case Material |
Aluminium (Top), Aluminium (Bottom) |
| SOFTWARE | |
| Operating System |
None |
| Bundled Software |
None |
| CONNECTIVITY | |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3 |
| WWAN |
WWAN Not Supported |
| SIM Card |
No physical SIM card included |
| Ethernet |
100/1000M (RJ-45) |
| NFC |
No NFC |
| Standard Ports |
|
| Optional Ports (configured) |
1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 15-65W and DisplayPort™ 1.4 |
| Docking |
Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® E16 Gen 3 (Intel®) |
| SECURITY & PRIVACY | |
| ThinkShield |
ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit here |
| Security Chip |
Discrete TPM 2.0 Enabled |
| Physical Locks |
Kensington Nano Security Slot™, 2.5 x 6 mm |
| Smart Card Reader |
No Smart Card Reader |
| Fingerprint Reader |
Touch Style, Match-on-Chip, Integrated in Power Button |
| Other Security |
|
| MANAGEABILITY | |
| System Management |
Non-vPro® |
| SERVICE | |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
1Y Premier WHB (CPN), 3Y Courier/Carry-in upgrade from 1Y Courier/Carry-in WHB (CPN) |
| ACCESSORIES | |
| Bundled Accessories |
None |
| CERTIFICATIONS | |
| Green Certifications |
|
| Mil-Spec Test |
MIL-STD-810H military test passed |
