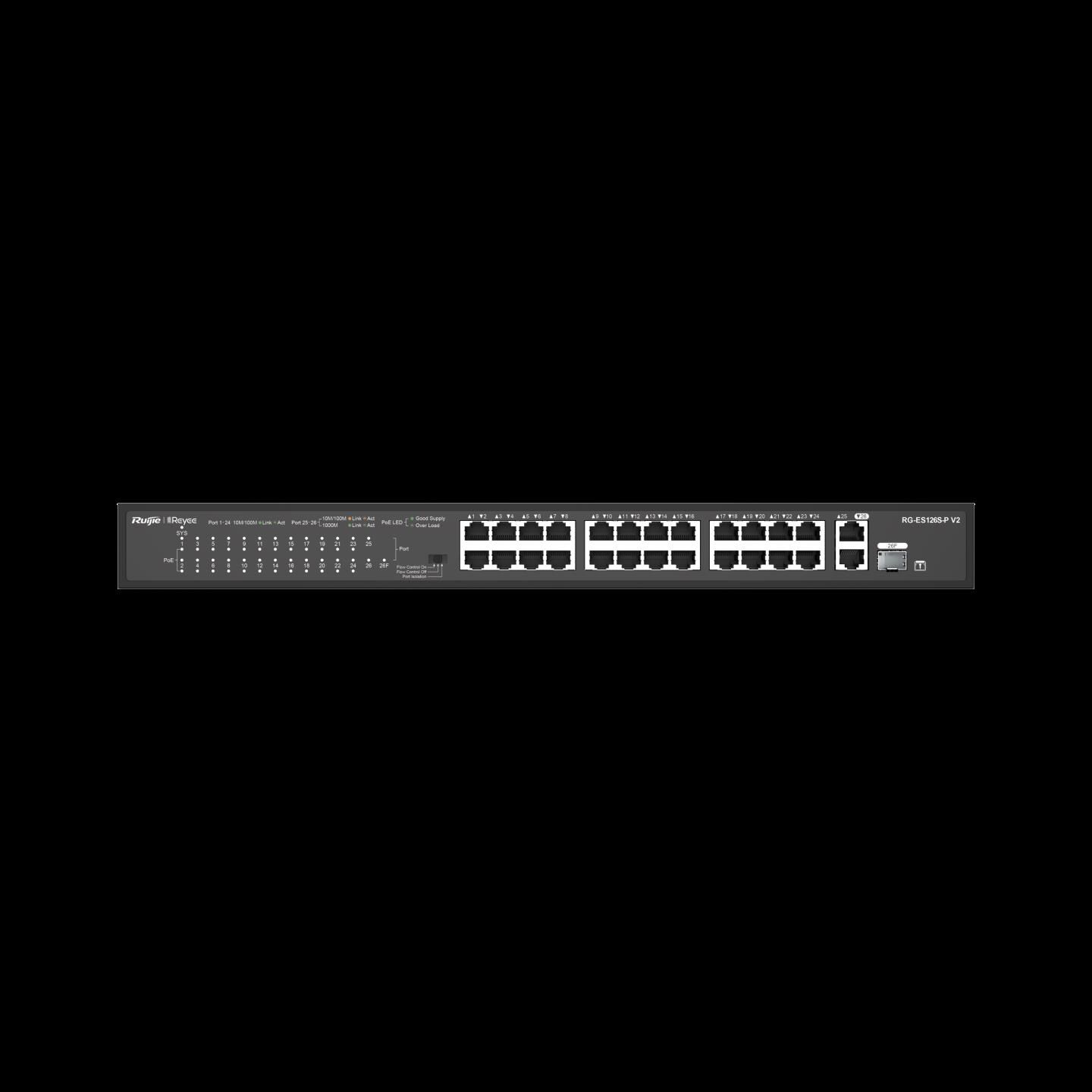

RUIJIE REYEE RG-ES126S-P 24 PORT 10/100 24 PORT POE+ 1X UPLINK + 1XSFP 370 WATT YONETILEMEZ RACK MOUNT SWITCH
|
Overview |
Reyee RG-ES126S-P V2 100Mbps POE Switch 24 Port 10/100Mbps 802.3af/at 24 Port 370W, Uplink 2 Port Gigabit |
|
Downlink Ports |
24 x 10/100BASE-TX |
|
Uplink Ports |
2 x 10/100/1000BASE-T with 1 Combo port |
|
PoE/PoE+ ports |
24 |
|
Max. PoE budget |
370W |
|
Switching capacity |
8.8 Gbps |
|
Forwarding rate |
6.55 Mpps |
|
MAC address table |
16000 |
|
Dimensions (W x D x H) |
440 mm × 208 mm × 44 mm |
|
Weight (With package) |
3 kg |
|
Auto/Full/Half Duplex Negotiation |
Support |
|
Auto MDI/MDIX |
Support |
|
Cloud Management |
Cloud monitoring |
|
Flow Control |
Support |
|
Port Isolation |
Support |
|
Power Consumption |
<432W |
|
Power Supplies |
100V AC to 240V AC, 4A |
|
Surge Protection |
6kV |
|
Fan |
Support |
|
Operating Temperature |
0°C to 45°C (32°F to 109°F) |
|
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Operating Humidity |
10% RH to 90% RH |
|
Storage Humidity |
5% RH to 95% RH |
|
MTBF |
> 200,000 |
|
Certificate |
CE, RoHS |
