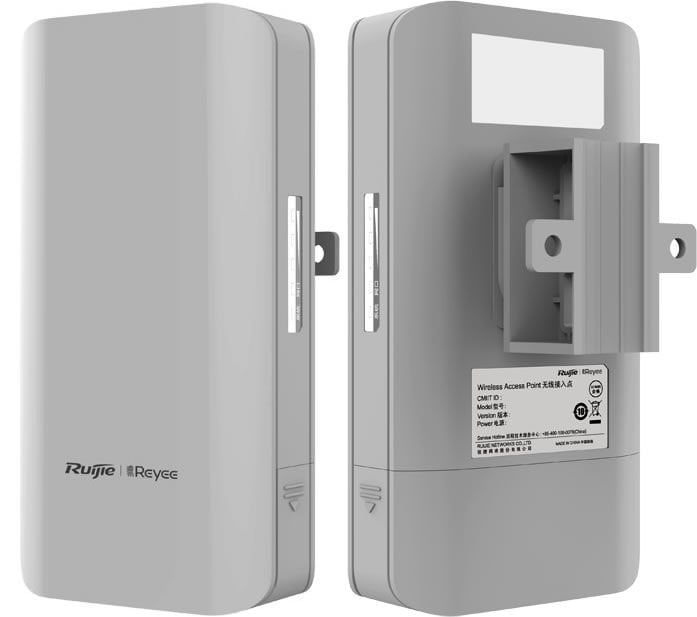

RUİJİE - REYEE RG-EST310 V2 5 GHZ 13 DBİ OUTDOOR WİRELESS BRİDGE (TAKIM)
RUİJİE - REYEE RG-EST310 5 GHZ 10 DBİ OUTDOOR WİRELESS BRİDGE 2 'Li Set olarak satılmaktadır. 5GHz 10dBi Outdoor wireless bridge, 2 devices paired in the package for the camera-end and NVR-end, up to 867 Mbps throughput, built-in internal directional antenna, 12V DC and 24V passive PoE, support eweb and Ruijie cloud management; 2 24V PoE adapters included; Wall-mounted/Pole-mounted installation. Dahili yönlü antenler, yatay: 60, dikey: 30, kazanç: 10dBi https://www.ruijienetworks.com/products/Reyee-Wireless/Reyee-Wireless-Bridge/est310
|
Model |
RG-EST310 |
|
|
Hardware Specifications |
||
|
RAM/ Flash |
64MB/8MB |
|
|
Radio |
Dual-stream single-band 22 |
|
|
Operating Band |
802.11a/n/ac：5.725～5.850GHz |
|
|
Antenna |
Built-in directional antennas, horizontal: 60, vertical: 30, gain: 10dBi |
|
|
Spatial Streams |
2 |
|
|
Maximum Throughput |
Up to 867Mbps at 5GHz |
|
|
Transmit Power |
≤250mW |
|
|
Dimensions |
147mm(D)76mm(W)37mm(H) (Dimensions per device) (Same size for the transmitter and receiver, H: height of the device excluding the mounting kits) |
|
|
Weight |
0.35kg |
|
|
Ports |
1 10/100Base-T Ethernet port, supports 24VDC passive PoE 1 DC port, supports 12VDC power supply |
|
|
Hardware Button |
1 reset button |
|
|
Status Indicators |
System indicator: 1 Port indicator: 1 Bridge signal strength indicators: 3 |
|
|
Power Supply |
Support 12VDC power supply and 24VDC passive PoE |
|
|
Power Consumption |
＜5W |
|
|
Environment |
Operating temperature: -30C～50C |
|
|
Storage temperature: -40C～70C |
||
|
Operating humidity: 5% to 95% (non-condensing) |
||
|
Storage humidity: 5% to 95% (non-condensing) |
||
|
Installation |
Wall-mounted/ Pole-mounted (straps provided) |
|
|
IP Rating |
IP65 |
|
|
Lightning Protection |
4KV |
|
|
Radio Standard |
SRRC certification |
|
|
Warranty |
3 Years |
|
|
Software Features |
||
|
Zero-Touch Configuration |
Support Ruijie Cloud App remote configuration |
|
|
Automatic Bridging |
Support The recorder-end and camera-end are automatically paired for bridging by default |
|
|
Device Configuration and Management |
Support App/Web monitoring and management |
|
|
QR Code Login |
Users can log in to the device configuration interface by scanning the QR code of the device using the app |
|
|
Self-healing |
Automatic restart upon equipment failure |
|
|
Automatic Channel Adjustment |
Automatically adjust the channel upon power-on |
|
Camera Support Reference:
|
Model |
Antenna Polarization |
Distance (Meters) |
RSSI (dBm) |
Negotiate speed (Mbps) |
Port Speed (Mbps) |
3MP H.265 (Units) |
4-5MP H.265 (Units) |
6-7MP H.265 (Units) |
|
RG-EST310 |
10dBi H: 60 V: 30 |
100 |
-52 |
400 |
90 |
16 |
10 |
7 |
|
500 |
-65 |
400 |
80 |
16 |
10 |
7 |
||
|
1000 |
-68 |
240 |
80 |
16 |
10 |
7 |
||
|
2000 |
-75 |
120 |
40 |
6 |
4 |
3 |
