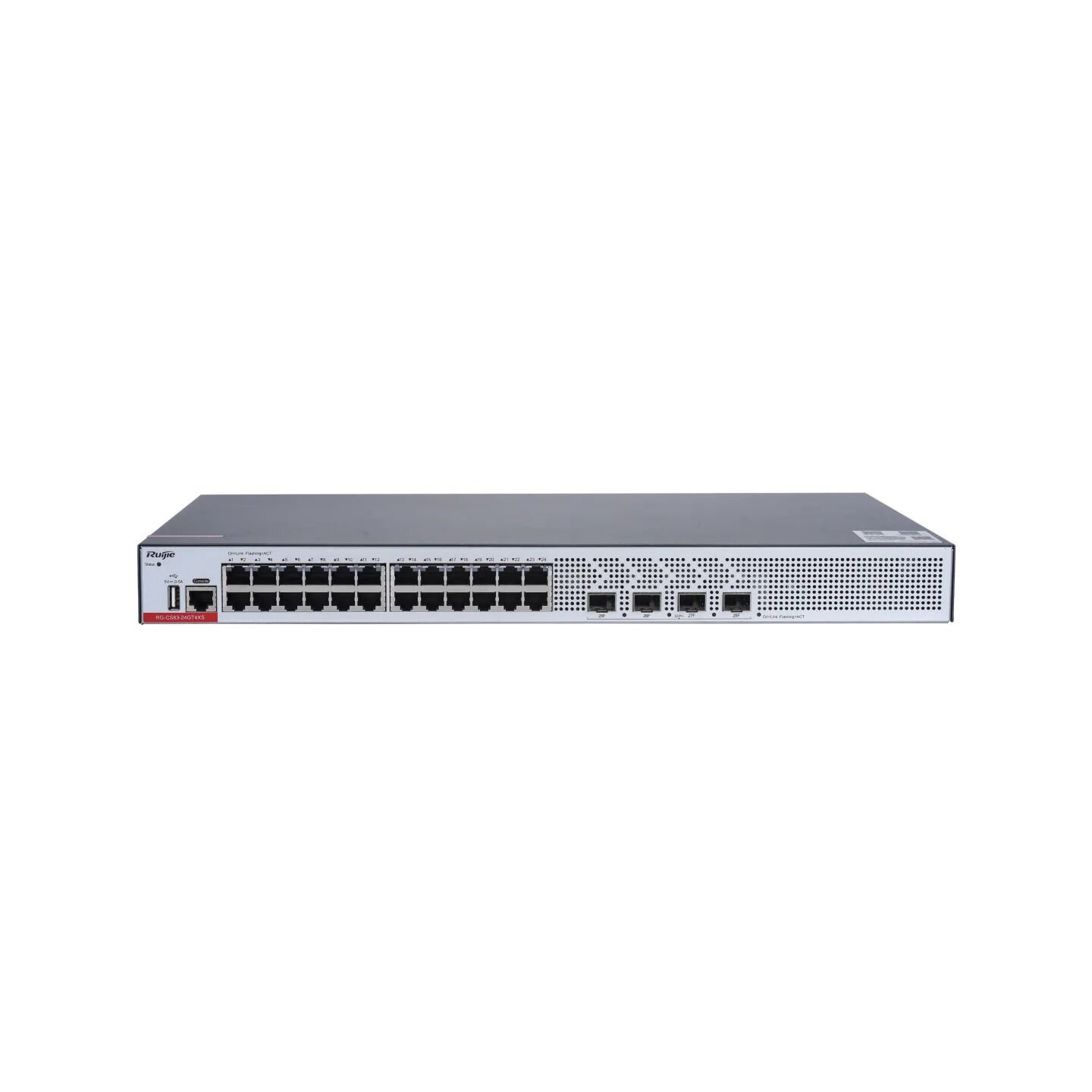

RUIJIE RG-CS83-24GT4XS 24 PORT 10/100/1000 4-PORT 1G/10G L3 YÖNETİLEBİLİR RACK MOUNT SWITCH
Specifications
Hardware Specifications
|
Port Specifications |
RG-CS83-24GT4XS |
|
Fixed service ports |
24 x 10/100/1000BASE-T ports 4 x 1GE/10GE SFP+ ports |
|
Fixed management port |
1 x RJ45 console port |
|
USB |
1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested) |
|
System Specifications |
RG-CS83-24GT4XS |
|
Packet forwarding rate |
96 Mpps |
|
Switching capacity |
128 Gbps |
|
CPU |
Dual-core CPU, each core with the clock speed of 1.0 GHz |
|
BootROM |
16 MB (storing boot software for 1+1 boot redundancy) |
|
Flash memory |
512 MB (storing boot software for 1+1 boot redundancy) |
|
Memory |
1 GB |
|
Switch buffer |
4 MB |
|
MAC address table size |
16,000 |
|
ARP table size |
4,000 |
|
Number of IPv4 unicast routes |
6,000 |
|
Number of IPv4 multicast routes |
1,000 |
|
Number of IPv6 unicast routes |
2,000 |
|
Number of IPv6 multicast routes |
750 |
|
Number of ACEs |
Ingress: 1,750 Egress: 800 |
|
Number of VSU members |
4 |
|
Dimensions and Weight |
RG-CS83-24GT4XS |
|
Unit dimensions (W x D x H) |
442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) |
|
Shipping dimensions (W x D x H) |
540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.) |
|
Rack height |
1 RU |
|
Unit weight |
3.1 kg (6.83 lbs) |
|
Shipping weight |
4.10 kg (9.04 lbs) |
|
Power supply and Consumption |
RG-CS83-24GT4XS |
|
Power supply |
1 x fixed power supply |
|
Power input |
AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 0.6 A |
|
Maximum output power |
Built-in power supply: 25 W |
|
Maximum power consumption |
25 W |
|
Energy saving |
Supported |
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
|
Environment and Reliability |
RG-CS83-24GT4XS |
|
Temperature |
Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
|
Humidity |
Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
|
Altitude |
Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
|
Mean time between failure (MTBF) |
207,962 hours (about 23 years) |
|
Fan |
No fan |
|
Heat dissipation |
Fanless design, natural heat dissipation |
|
Acoustic noise |
Fanless, quiet, < 20 dB |
|
Cable hot swapping |
Cable hot swapping for all ports |
|
Fan monitoring |
Fanless design |
|
Temperature monitoring |
Supported |
|
ESD |
ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV |
|
Surge protection |
Power port: common mode 6 kV, differential mode 6 kV Communication port: 10 kV |
|
Conformal coating |
Conformal coating supported (key components only) |
|
Certifications and Regulatory Compliance |
RG-CS83 Series |
|
Safety regulation |
IEC 62368-1 |
|
EMC regulation |
EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
|
Communication standard |
IEEE 802.3-2005 Ethernet standard IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication |
|
RoHS |
Supported |
