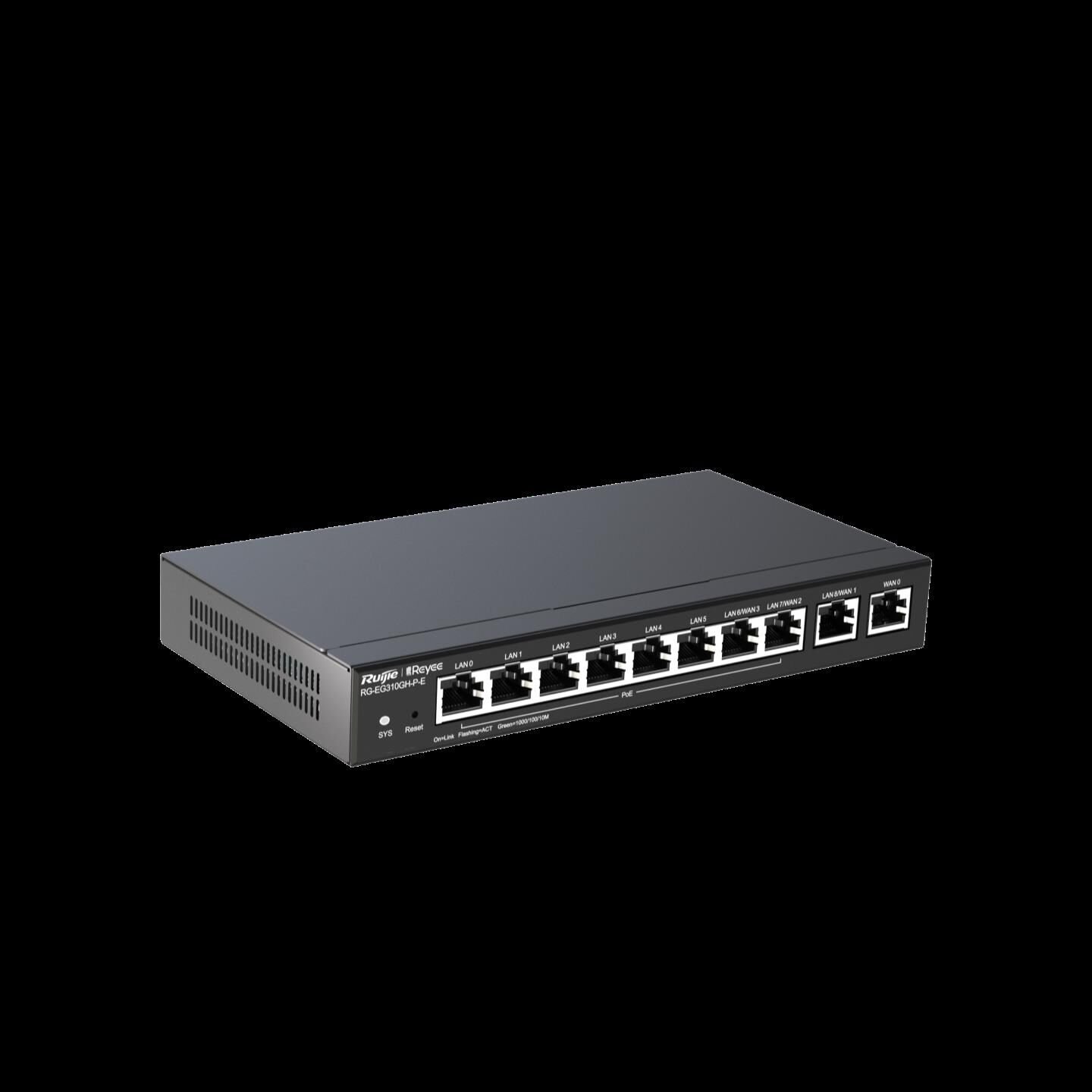

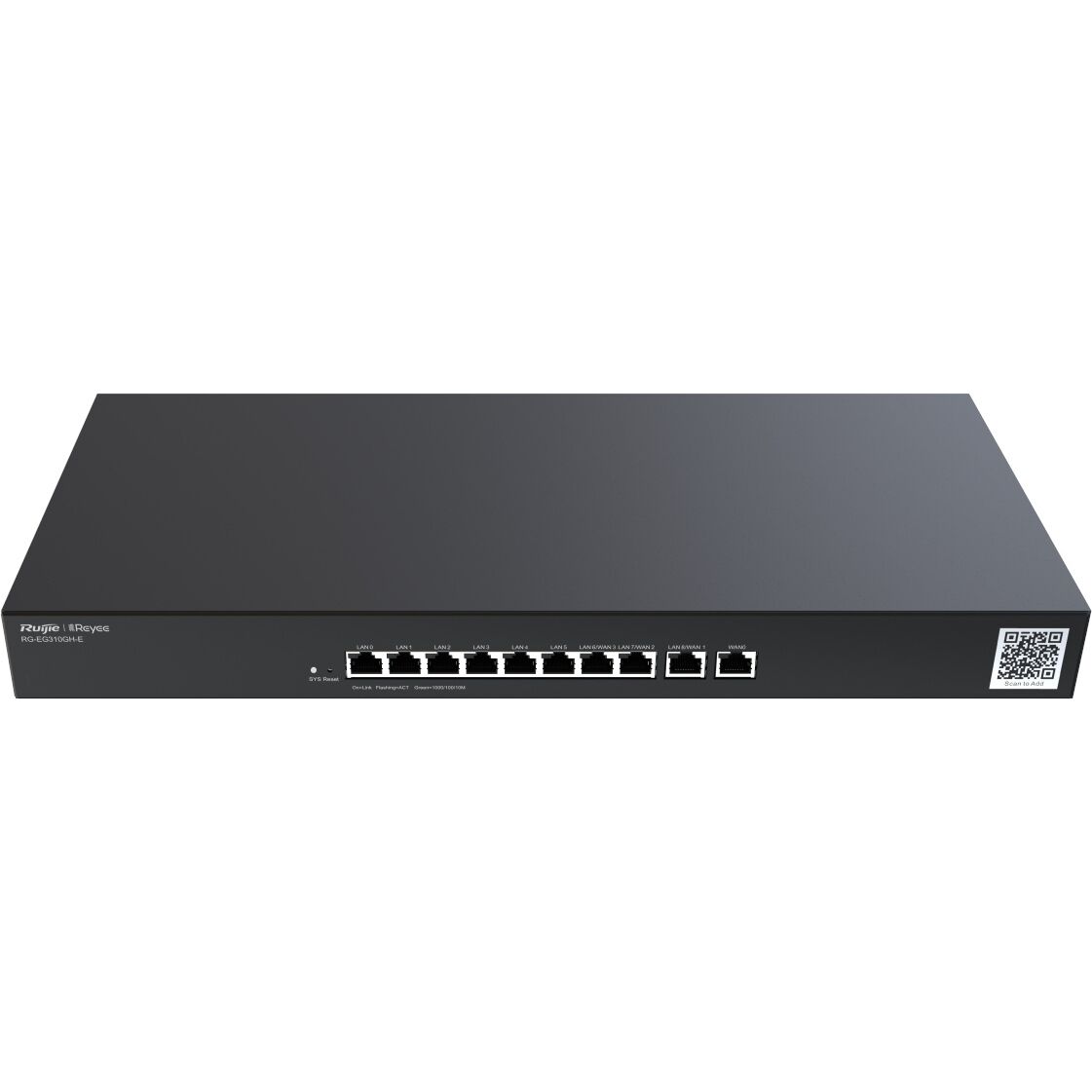

RUIJIE RG-EG310GH-E 10 PORT GIGABIT 10/100/1000 YONETILEBILIR GATEWAY/ROUTER
Highlight Features
- 1.5Gbps throughput high-performance VPN router for office network
- Provide powerful VPN for branches and remote workers
- Provide traffic visualization monitoring, everything in a glance
- New efficient way of bandwidth management based on application and user
- Unbreakable multi-WAN, intelligent load balancing
|
Product Specification |
|
|
Fixed WAN Port |
1×10/100/1000 Base-T |
|
Fixed LAN Port(s) |
6×10/100/1000 Base-T |
|
LAN/WAN Switchable Port(s) |
3×10/100/1000 Base-T |
|
Performance |
1.5 Gbps (1518 Byte,NAT+Flow Audit) |
|
Throughput |
1.5 Gbps |
|
Recommended Clients |
300 |
|
Power Consumption |
≤ 130 W |
|
Network Access Mode |
PPPoE Client |
|
Automatic Identification of Internet Type |
Support |
|
Avoidance of WAN IP Address Conflicts |
Support |
|
Learning PPPoE Account & Password |
Support |
|
VLAN |
8 |
|
IPv6 |
Support |
|
IPTV |
Support |
|
AC Mode |
Support |
|
Behavior Management |
App Block (Time/IP-based Policy) |
|
Application Recognition |
Identify 100+ Applications, including Office, IM, Web Page, Online Shopping, Online Gaming, P2P Download and Popular Videos |
|
Application Priority |
Support |
|
Flow Control |
Smart Flow Control |
|
Traffic Audit |
Real-time Traffic Audit |
|
Diagnosis |
Support |
|
Marketing authentication |
WiFiDog (SMS authentication and one-click authentication) |
|
Local authentication |
Portal Authentication |
|
Max Manager Reyee Switchs |
128 |
|
No. of PPPoE Server Account |
64 |
| VPN Support |
L2TP VPN |
|
No. of PPTP&L2TP&OpenVPN Account |
300 |
|
Overall IPsec VPN Performance |
230 Mbps |
|
Overall L2TP VPN Performance |
640 Mbps |
|
Overall OPENVPN Performance |
100 Mbps |
|
VPN Tunnels |
IPsec : 64 |
|
Routing |
Static, RIP/RIPng |
|
Policy-Based Routing (PBR) |
Support |
|
WAN Port Failover |
Support |
|
WAN Load Balancing |
Support |
| Load Balance Mode |
Load balancing based on source address |
|
DDNS |
Oray DDNS,DynDns, NO-IP, Ruijie DDNS |
|
Port Mapping |
Support |
|
ACL/Time-based ACLs |
Support |
|
ARP binding |
Support |
| Firewall |
Prevent Port Scan Attack |
| Management |
Cloud, Mobite App |
|
CPU |
2 Cores, 1.35 GHz |
|
SDRAM/RAM |
512 MB |
|
Flash Memory |
Flash Memory |
|
Power Supplies |
DC 54V/2.4A (Adapter included) |
|
PoE Standard |
IEEE 802.3af/at |
|
PoE Power Budget |
110 W |
|
Dimensions(W×D×H) |
202 mm x 28 mm x 108 mm (7.9 5 in. x 1.1 in. x 4.25 in.) |
|
Weight |
0.55 kg (packages not included) |
|
Installation |
Desk-mounted |
|
Rack Dimensions |
N/A |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Operating Humidity |
10% to 90% Noncondensing |
|
Storage Humidity |
5% to 90% Noncondensing |
|
Port Surge |
4 kV |
