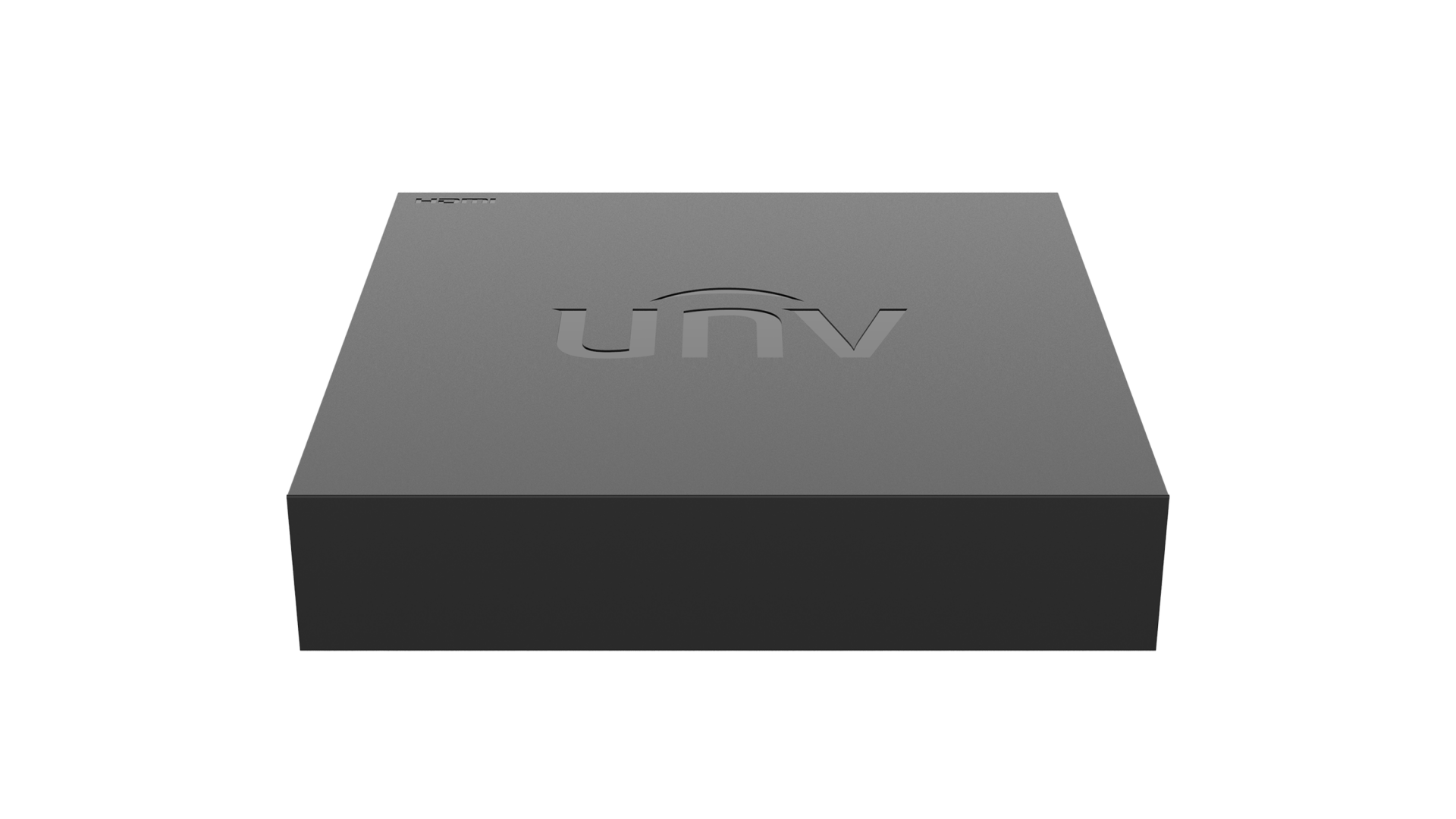

UniView XVR301-08F 8 Kanal 1 Kanal Ses 1080P 1 SATA - 6TB HD-TVI/AHD/CVI/CVBS

Video/Audio Input Description IP Video Input 2-ch Analog Video Input XVR301-04F:4-ch, BNC XVR301-16F:16-ch, BNC XVR301-08F:8-ch, BNC Max IP Video Input XVR301-04F:6-ch XVR301-16F:18-ch XVR301-08F:10-ch Supported Analog Camera Types Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input Video/Audio Output Description HDMI Output HDMI:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA Output VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz Live View Display XVR301-04F:HDMI/VGA: 1/4/6/8/9 XVR301-16F:HDMI/VGA: 1/4/6/8/9/25 XVR301-08F:HDMI/VGA: 1/4/6/8/9/16 Encoding/Decoding Description Recording Resolution 1080P Lite/720P/D1 Recording Frame Rate XVR301-04F:Main stream: 1080P Lite@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps XVR301-16F:Main stream: 1080P Lite@12fps Sub stream: D1@12fps Main stream: 720P@15fps Sub stream: D1@15fps XVR301-08F:Main stream: 1080P Lite@15fps Sub stream: D1@12fps Main stream: 720P@15fps Sub stream: D1@15fps Audio Sample Rate 8KHz,16 bit per channel Audio Bit Rate 64Kbps per channel Decoding Capability XVR301-04F:Analog:4 x 1080P Lite@25, 4 x 720P@30 IP: 1 x 6MP@20, 2 x 1080P@30 XVR301-16F:Analog:16x 1080P Lite@12, 16x 720P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30, 8 x 720P@30,16 x D1@30 XVR301-08F:Analog:8x 1080P Lite @15, 8x 720P @15 IP: 1 x 6MP@20, 2 x 1080P@30 Two-way Audio Description Two-way Audio NA Analog Snapshot Description FTP/Schedule/Event Snapshot XVR301-04F:FTP/Event snapshot:4-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported XVR301-16F:FTP/Event snapshot:16-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported XVR301-08F:FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported Network Description Incoming Bandwidth XVR301-04F:24Mbps (Up to 32Mbps after all analog channel conversion) XVR301-16F:24Mbps (Up to 56Mbps after all analog channel conversion) XVR301-08F:24Mbps (Up to 40Mbps after all analog channel conversion) Outgoing Bandwidth XVR301-04F:48Mbps XVR301-16F/XVR301-08F:64Mbps Remote Users 128 Protocols TCP/IP;P2P;UPnP;NTP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP Browser(Plugin) IE(IE10/11) Firefox (version 52.0 and above) Chrome(version 45 and above) Edge(version 79 and above) Smart Description Analog Smart by XVR Ultra Motion Detection(UMD) VCA Search Behavior Search Smart Functions by XVR XVR301-04F:4-ch(UMD) XVR301-16F/XVR301-08F:8-ch(UMD) Alarm Description General Alarm Motion Alert Alarm IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal Hard Disk Description SATA 1 SATA interface Capacity Up to 6TB for each HDD External Interface Description Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface USB Rear panel: 2 x USB2.0 Power Supply DC 12V/1.5A Working Environment Description Working Temperature -10°C ~ + 55°C ( +14°F ~ +131°F ) Working Humidity ? 90% RH(non-condensing) Power Consumption (without HDD) ? 10W Dimensions Description Weight (without HDD) XVR301-04F/XVR301-08F:?0.6 Kg ( 1.32lb ) XVR301-16F:?0.85 Kg ( 1.87lb ) Dimensions XVR301-04F/XVR301-08F:190mm × 202mm × 42mm (7.5" × 7.9" × 1.6") XVR301-16F:253mm × 212mm × 42mm (10.0" × 8.4" × 1.7") Certification Description Certification CE, FCC, UL, RoHS, WEEE CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 FCC Part15 Subpart B
